DIY XT-225 inverted rear brake rod instructions #7600 08/05/06 12:03 AM
Joined: Jan 2006
Posts: 297
K
klm4755 Offline OP
Member L2
***
OP Offline
Member L2
***
K
Joined: Jan 2006
Posts: 297
Enclosed is a step by step procedure for inverting your rear brake rod from the lower side of the rear axial to the top of the rear axial. The brake will function in either position. However it is advantageous to house the brake rod in the top position as the brake system is less susceptible to contact damage from ground objects. The Brazilian models reflect this configuration, so it must be better!

Standard, as delivered, brake rod position

After modification

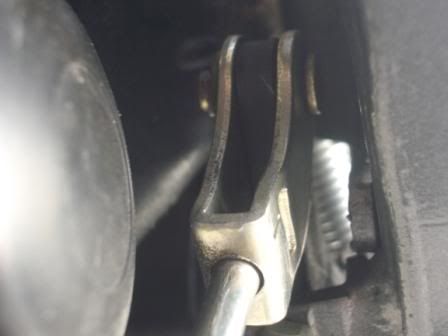

brake rod connection to foot brake side. Don’t mess with this end.

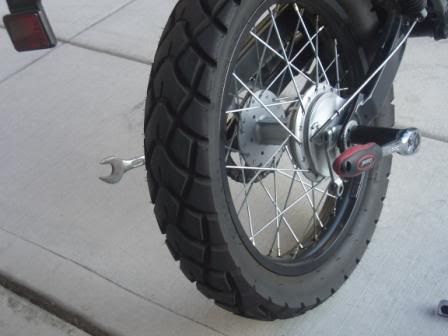

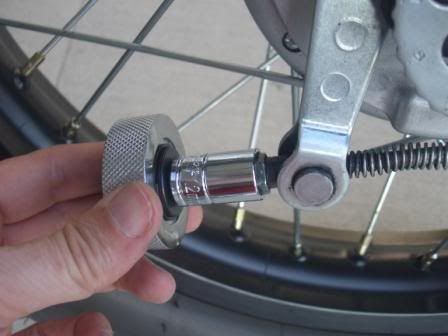

use this tool to quickly loosen brake rod...12mm socket.

Like this

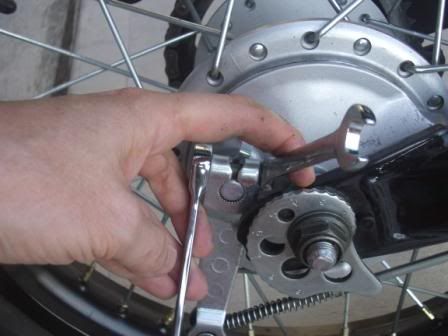

loosen brake bracket 2x 10mm wrenches. Always unthread nut. Hold bolt head steady.

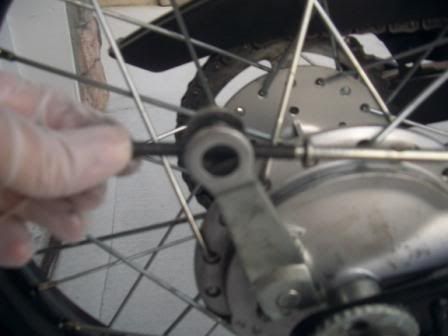

Rod decoupled, the brake actuator bracket will not come off. Bike frame is in the way. Need to take wheel off to gain access. Dough...hassle factor increases!

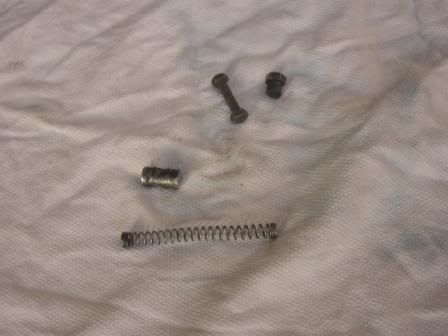

parts for inspection and cleaning

[ August 04, 2006: Message edited by: klm4755 ]


Keith
Re: DIY XT-225 inverted rear brake rod instructions #7601 08/05/06 12:04 AM
Joined: Jan 2006
Posts: 297
K
klm4755 Offline OP
Member L2
***
OP Offline
Member L2
***
K
Joined: Jan 2006
Posts: 297

loosen rear wheel nut prior to jacking. Use x1 22mm hold wrench, 1x 22mm rachet socket. Use 1/4 drive on socket

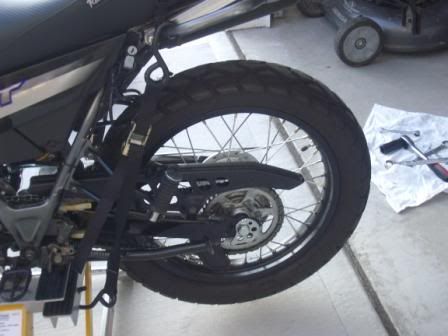

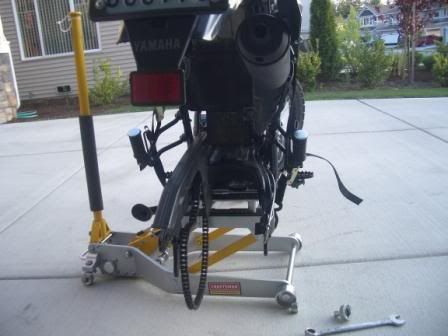

ok to raise...

no details on rear wheel removal. Not intent of this “how to”.

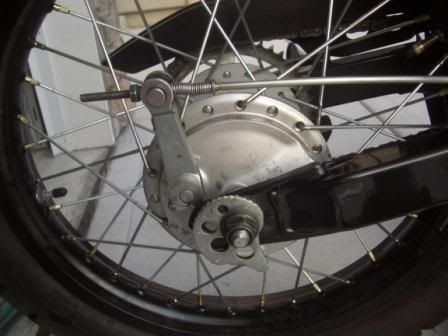

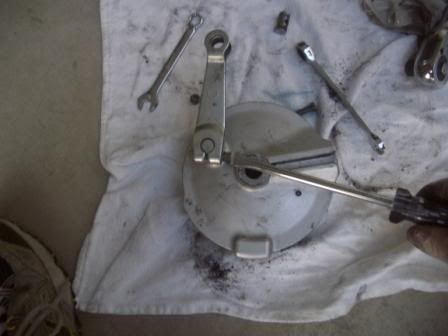

Brake hub off, brake bracket in standard location. Use screw driver to gently pry off serrated stud.

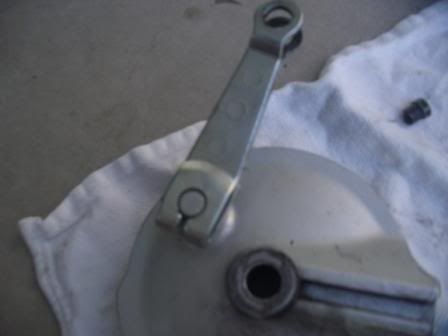

relocation of bracket iteration 1x

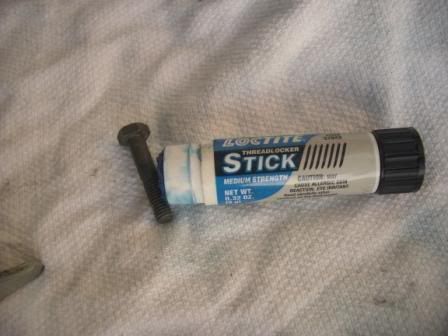

locktight threads

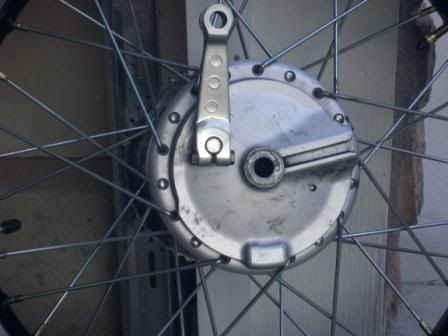

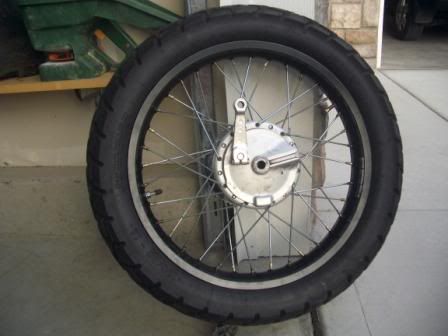

Brake hub on iteration 1x

close up of hub iteration 1x

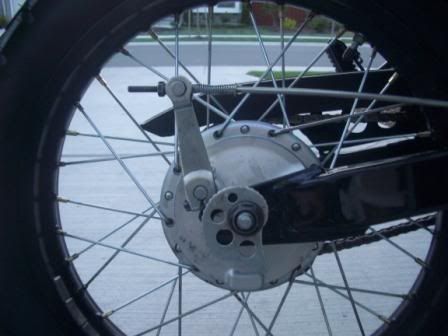

wheel mounted on bike. Brake locked up. Does not work properly. Bracket too far forward. Need to rotate a bit aft (torwards the rear). Need to remove wheel again.


Keith
Re: DIY XT-225 inverted rear brake rod instructions #7602 08/05/06 12:04 AM
Joined: Jan 2006
Posts: 297
K
klm4755 Offline OP
Member L2
***
OP Offline
Member L2
***
K
Joined: Jan 2006
Posts: 297

pry off bracket.

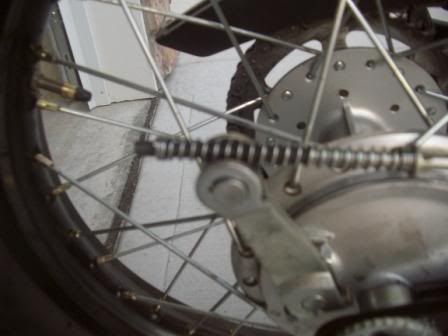

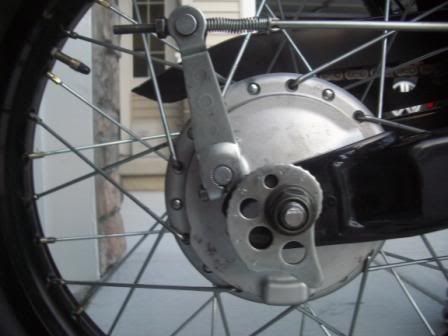

Brake rod resting position after wheel installed. Right in center of rod threads. This is where it needs to be!

Add spring. Bend the rod. No need to remove wheel to attach rod. The rod material is a very malleable steel. Ok to elastically or even plastically bend. To can form it back into shape after install.

Re-attach rod retaining nut.

Check and readjust brake settings. Peddle should be .40 inch below footrest. Brake should engage at .8 to 1.2 inches below this rest position.

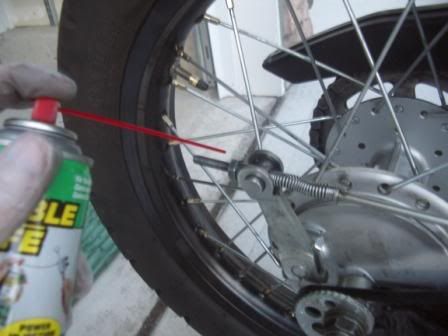

Lube the system

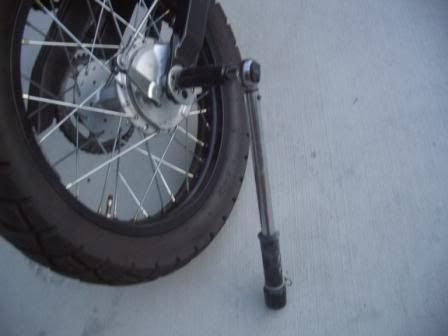

torque wrench rear nut at 61 ft-lbs

All done


Keith
Re: DIY XT-225 inverted rear brake rod instructions #7603 08/05/06 12:06 AM
Joined: Jan 2006
Posts: 297
K
klm4755 Offline OP
Member L2
***
OP Offline
Member L2
***
K
Joined: Jan 2006
Posts: 297

another view. Big tip......use this view for your bracket placement, so you will not have to iterate the bracket location.

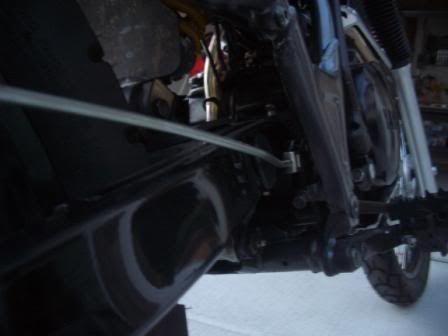

No issues with brake rod. Clears all components.

[ August 04, 2006: Message edited by: klm4755 ]


Keith
Re: DIY XT-225 inverted rear brake rod instructions #7604 08/05/06 01:50 AM
Joined: Jul 2006
Posts: 165
Mike O Offline
Member L1
*****
Offline
Member L1
*****
Joined: Jul 2006
Posts: 165
wow, thanks for the step by step procedure, this will make my project easier for me


59 minutes 59 seconds ago
Re: DIY XT-225 inverted rear brake rod instructions #7605 08/07/06 06:14 PM
Joined: May 2006
Posts: 7
R
Remy Le Havre Offline
Junior Member
Offline
Junior Member
R
Joined: May 2006
Posts: 7
I enjoy your pictoral demonstrations very much, but I would like to suggest a couple of things to consider if this modification is done. First, the clevis that attaches the actuator rod to the rear brake pedal is not straight. It has a vertical offset. If you also invert this clevis you will increase the clearance between the actuator rod and the upper outside edge of the swingarm. Second you make no mention of the ware guage indicator but someone suggested somewhere that you lose this feature if this modification is performed. The indicator is positioned on the pivot by means of one wide tooth which rests in a corresponding groove in the pivot. If this wide tooth is filed so that it has a profile similar to the other two teeth along the inner diameter you can reposition the indicator to the opposite end of the scale and the indicator will still work if you read the scale backwards. This whole guage thing is kind of a trivial bit but it can be salvaged if you want it.


Remy
Re: DIY XT-225 inverted rear brake rod instructions #7606 08/07/06 06:51 PM
Joined: Mar 2006
Posts: 32
T
That old man from Yankton, SD. Offline
Junior Member
Offline
Junior Member
T
Joined: Mar 2006
Posts: 32
Thanks KLM for another useful and helpful post and recommendation that even this "non-wrench" type can understand. Thanks for all of your posts to the Group. Roger


Soldierboy
Re: DIY XT-225 inverted rear brake rod instructions #7607 08/21/06 03:21 PM
Joined: May 2005
Posts: 41
S
stu35 Offline
Junior Member
***
Offline
Junior Member
***
S
Joined: May 2005
Posts: 41
Thanks - Good tip. I did this to my wifes bike. Nice thing was that I was able to move the wheel/axle far enough forward so I did not have to remove the wheel.


DRZ 400S (mine) Lots of Mods$$
CBR900RR (Mine)
XT 225 (Wifes) Carb Mod, Bar Risers, Z1's Stock Exhaust Mod
MX 80 (sons)
Ti Tibia and 4 Screws (Mine)
Re: DIY XT-225 inverted rear brake rod instructions [Re: stu35] #16962 01/18/07 09:12 AM
Joined: Dec 2006
Posts: 305
Walls Offline
Member L3
***
Offline
Member L3
***
Joined: Dec 2006
Posts: 305
I might have a look at this one for my XT. Looks a little odd in the pictures though I can see the benefits.
cheers


cheers

98 and 95 XT225, 2002 Honda ST1100
Re: DIY XT-225 inverted rear brake rod instructions [Re: Walls] #16967 01/18/07 03:36 PM
Joined: Aug 2006
Posts: 151
C
cyco Offline
Member L1
*****
Offline
Member L1
*****
C
Joined: Aug 2006
Posts: 151
I managed to complete the change without removing the rear wheel. Simply take the chain off of the rear sprocket then slide the wheel back as far is it goes. You should have enough room to remove the arm. However, when replacing the arm you will have to put it back on half-way, and when the first (inner) splined section gets to the indentation (where the retaining bolt goes), you can rotate the arm to the final position before placing the arm fully onto the shaft.

Sorry, no pics. I couldn't find my camera when I did this. Besides, it has already been documented.


Those who are fast seldom look it, and those who look fast seldom are.
